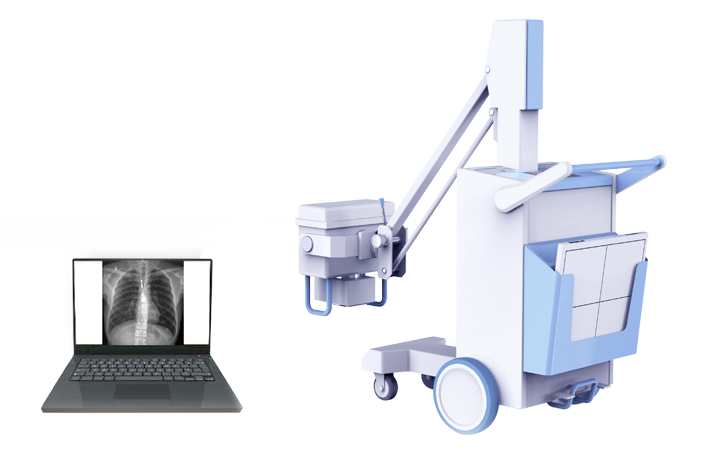

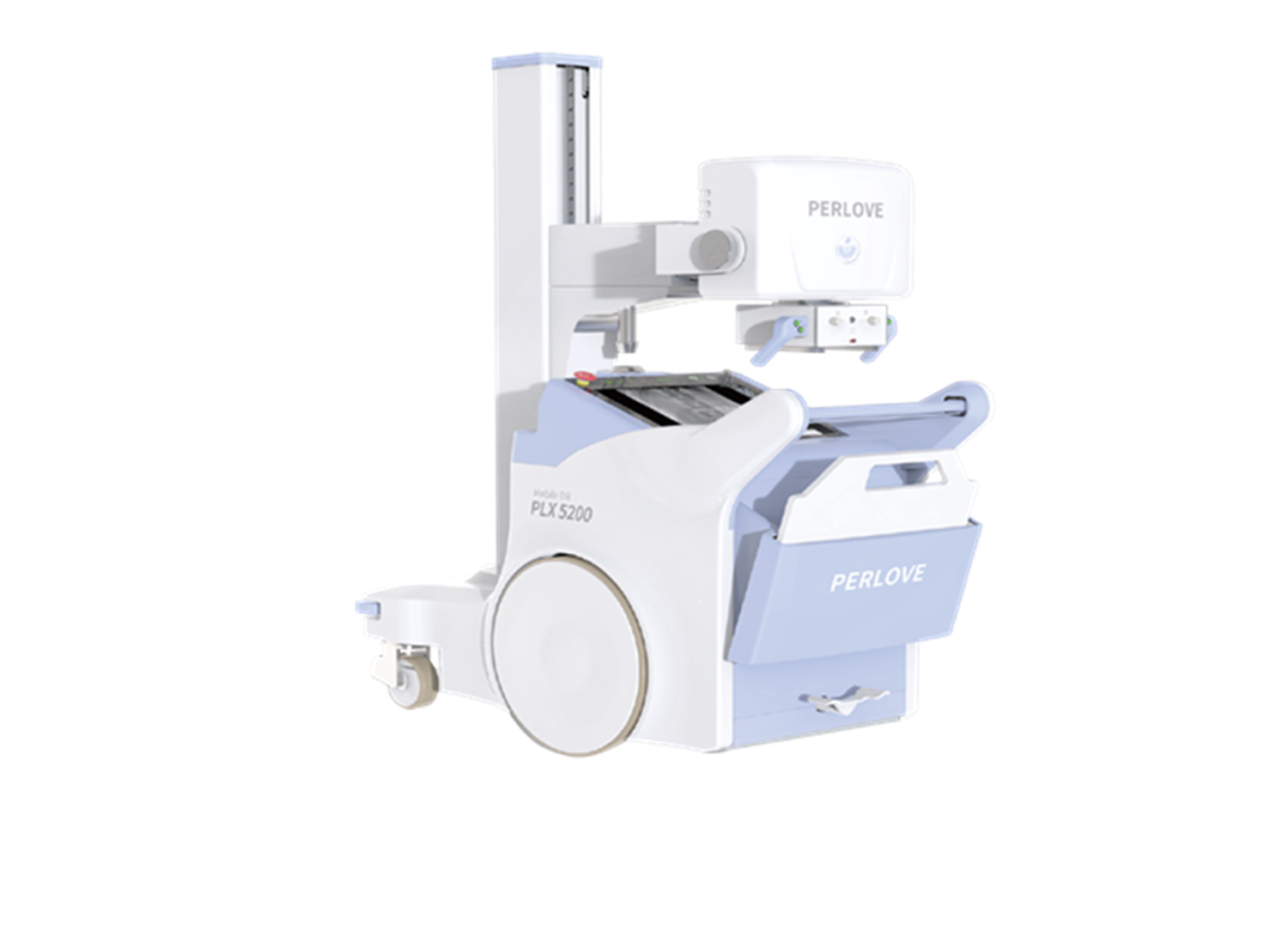

Mobile, accurate and versatile PLX5200A 50kW version are widely used in radiology, ward, ICU, operating room. Core Strengths Well-designed graphic screen delivers great convenience. Ultrasonic distance measurement, precise positioning. Small and ingenious rack. Vivid digital images. Large power supply capacity and low dose. Electric and automatic hand-moving wherever you want. High quality portable FPD,outstanding acquisition conversion performance, the sharp clinical image can be guaranteed.It can realize digital radiography of all human body parts friendly, like head, limbs, chest, spine lumber and so on.

Light and flexible collect sharp image Widely used in radiology, ward, ICU, operating room Core Strengths Compact frame, flexible movement Digital image ,sharp and delicate Super capacitor ,environmental protection electric power-assisted, Strong endurance Graphical interface, easy operation Ultrasonic ranging ,digital displayThe clear MV-level verification image has a resolution of up to 2816X2816. Not only are the bony markers clear, but the soft tissue information is also very rich. It is matched with the Ai fast registration algorithm for accurate positioning, making patient positioning easier and more efficient. High quality portable FPD, outstanding acquisition conversion performance, the sharp clinical image can be guaranteed. It can realize digital radiography of all human body parts friendly, like head, limbs, chest, spine lumber and so on

Lightweight Design Compact and Flexible The rocker arm can move up and down, the combined tube can rotate at multiple angles, with the wireless panel it is more convenient to operate. The width of the body is only 62cm, which can easily pass through narrow passages and can be used for clinical exposure in the ward. PLX5100 uses lightweight materials, the weight of the whole machine is less than 150KG, innovative mechanical design, light and flexible to move; dislocation brake system, safe and reliable braking. Equipped with large size, low energy consumption, portable mobile wireless flat panel detector. The workstation adopts DR special image acquisition and processing software, supports DICOM service, convenient to operate.

The machine is mobile X-ray radiography medical diagnostic equipment. It can be used in wards, operation rooms and emergency rooms etc to satisfy the radiography requirements of human body such as head, chest and limbs etc. The flexible movement of the unit thanks to main wheel and direction wheel design.

Multiple Applications Contribute for Accurate Diagnosis Digital radiography Applicable for all body parts radiography. Digital fluoroscopy It is suitable for fluoroscopy of various parts of the body. Digital angiography Partial angiography, such as esophagography, pyelography, salpingography.51 pairs of electric multi-leaf collimators, with a maximum field opening of 30cm Treat damage to normal tissue.

Clear Vision and Image Easier Clinical Diagnosis Hundred-micron configuration A hundred-micron FPD with excellent imaging performance; 4K*4K acquisition matrix and 100μm pixel size; Clearly display small lesions in each part of the examination; Clear lung texture, easy to observe Effectively displaying more cell image details; Clearer and sharper details such as hilar shadow structure and lung texture;

Self-developed high voltage generator

super high inverter frequency , Higher power output, better x ray quality; higher frequency , lower x ray cose short exposure time , environment friendly

Advanced Flat panel detector

Wired , wireless , double flat panel detector, optional meet various requirement

Self-developed high voltage generator

super high inverter frequency , Higher power output, better x ray quality; higher frequency , lower x ray cose short exposure time , environment friendly;51 pairs of electric multi-leaf collimators, with a maximum field opening of 30cm Treat damage to normal tissue.

Advanced Flat panel detector

Wired , wireless , double flat panel detector, optional meet various requirement

The system can be maintained remotely, it can perform fault self-diagnosis and display fault codes, quickly and accurately determine the fault status and has self-protection functions. lt can share information with PACS system, bring benefits for remote diagnosis.

Stable and Reliable Image Chain

Self-developed ultra-high frequency and high voltage generator 500kHz ultra high inverter frequency, Strong penetration ability, Low-dose radiation, Stable performance, High-quality image, High efficiency.

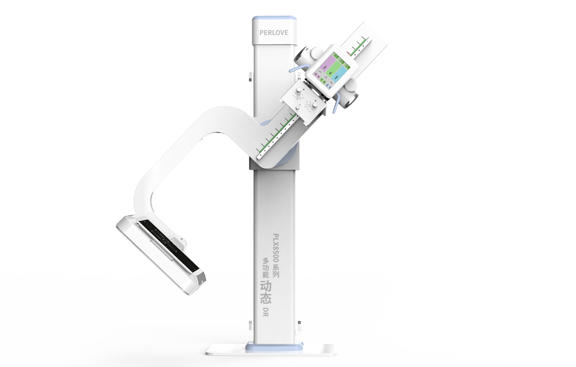

Digital motion x-ray use leading edge tecnology inmaking detailed and real time images than staticimages. Evaluate the patiens’ condition or recovery effectivelyby observing the dynamic changes of organ function. A technique for analyzing dynamic changes based on the transmittance of X-rays. Enables clinicians to observe the dynamic motion of anatomical structures over time, enhancingdiagnostic capabilities.

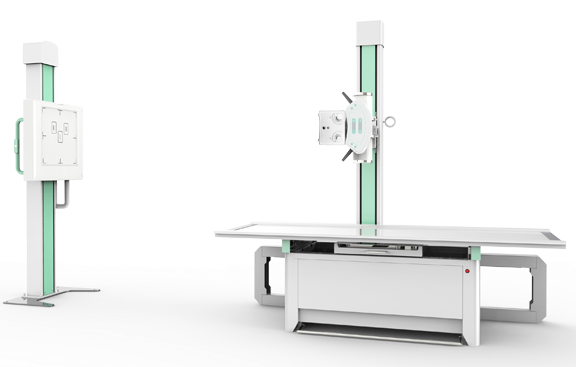

Economic flat panel detector DR, specially used in Primary Hospital,Clinic,Medical Center. High Frequency Digital Radiography System Digital system for different anatomic regions, such as head,chest,abdomen,limbs etc. World-class flat panel detector technology High-quality portable flat panel detector can bring high definition images and provide good security and reliability.

Digital system for different anatomic regions,such as head, chest,abdomen, limbs etc. Digital Storage: Quick and convenient, save the cost comparing with traditional film storage. lmage Edition: Multi—grade denoise, LIH, negative & positive images, image reverse and so on. Medical History Management: Database management, Graphic reports, Support WORKLIST. Digital Printer: can be connect with laser printer to print film. Digital Network: Support DICOM 3.0 and PACS network in hospital.

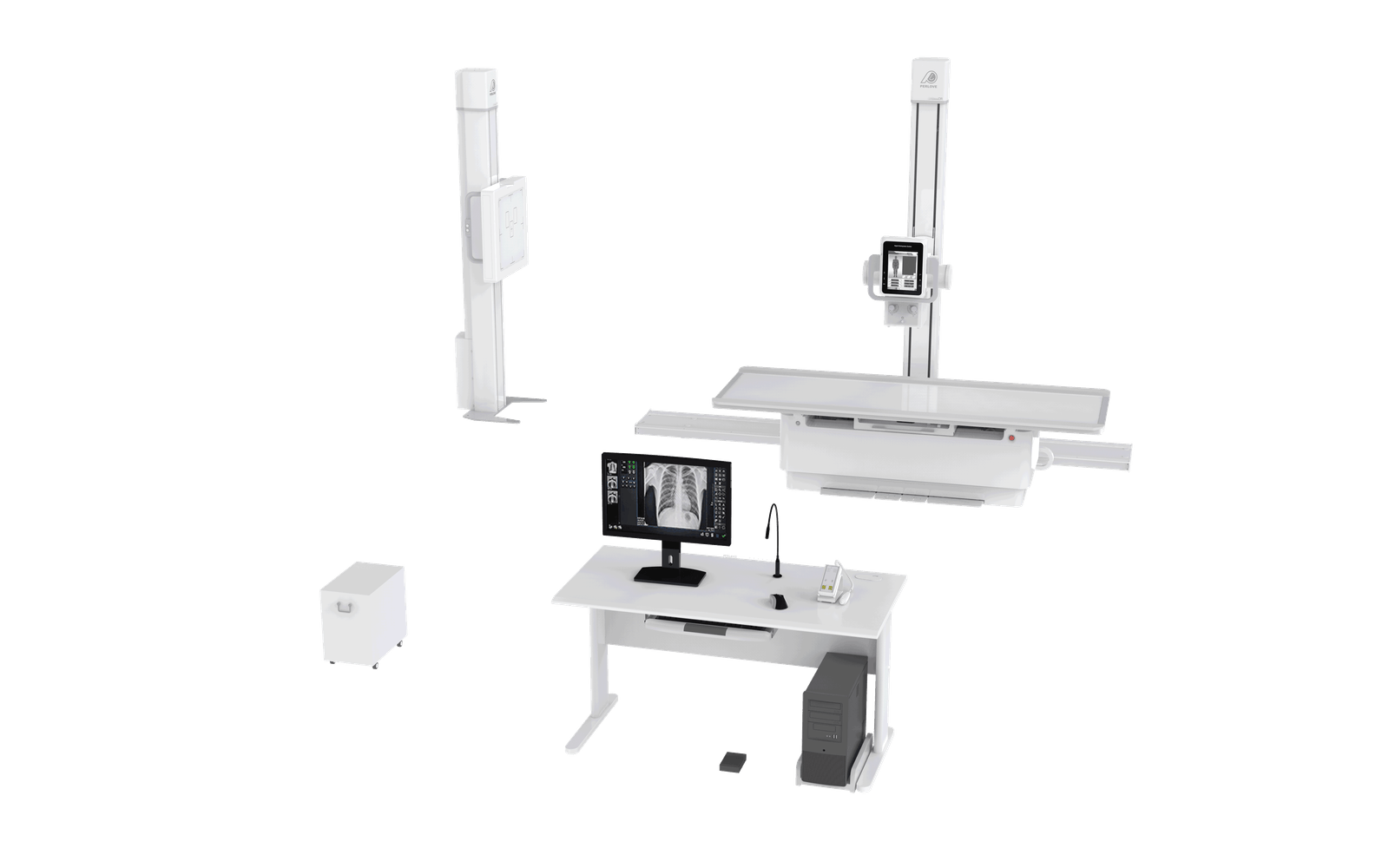

PLD6500 Medical Diagnostic X-Ray Equipment The PLD6500 high frequency digital x-ray equipment can be applied to satisfy the radiographic needs of different body parts: head, chest, abdomen, waist,thorax, pelvis, and limbs.The PLD6500 is also capable of serving different positions: lay decubitus,normotopia, side position,etc. It is designed as a fixed digital x-ray machine, though it can also be compacted into limited spaces, like buses and trucks.

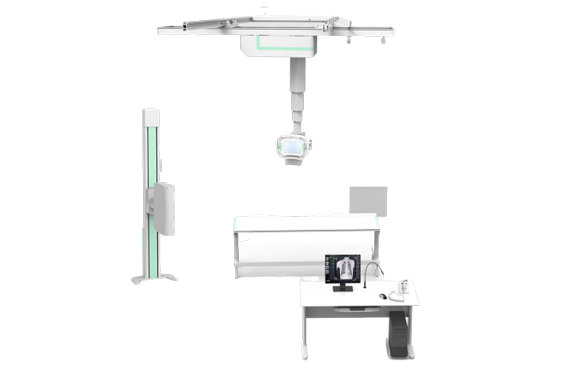

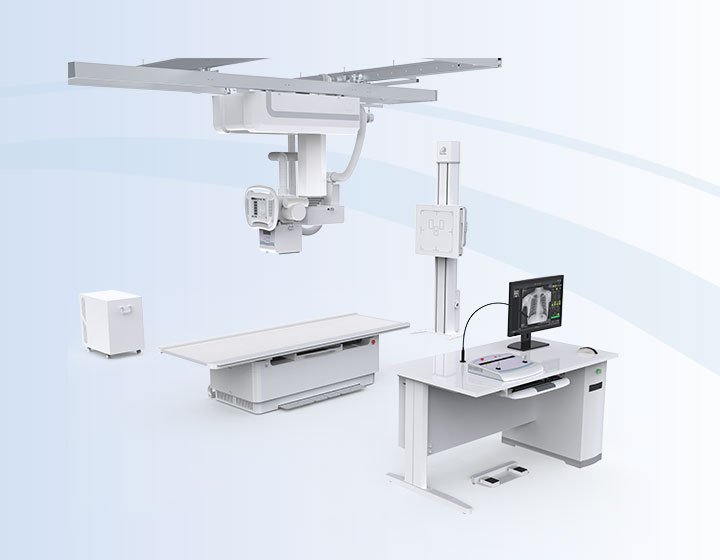

Revolution of Radiology Imaging Comprehensive Diagnosis All-in-one machine with superior performance. Human-friendly design to ensure sharp images, flexible operation, safety use and multiple clinical applications. Excellent imaging quality Convenient control lntelligent dose control Wide range of clinical applications

Advantages compared with static X-ray Digital motion x-ray use leading edge tecnology inmaking detailed and real time images than staticimages. Evaluate the patiens’ condition or recovery effectivelyby observing the dynamic changes of organ function.

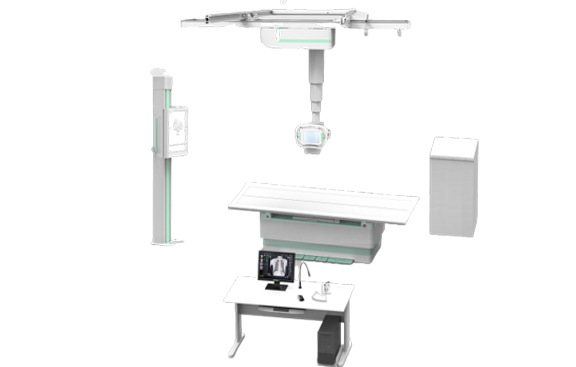

Rebirth of radiology imaging 100kW High power generator/large heat capacity/long standby time No appointment required, walk-in radiography The maximum heat capacity of X-ray tube reaches to 1.8MHU, which ensures a long standby time for continuous workflow regardless of radiography or fluoroscopy.

Obtain multiple diagnosis with dynamic and static imaging through multiple function of radiography, angiography and fluoroscopy. Super power output HD flat panel detector, Obtain image in milliseconds, 17in*17in view filed, Easily get high definite film paste, Extend able to different screens, High-resolution fluoroscopy and subtraction.

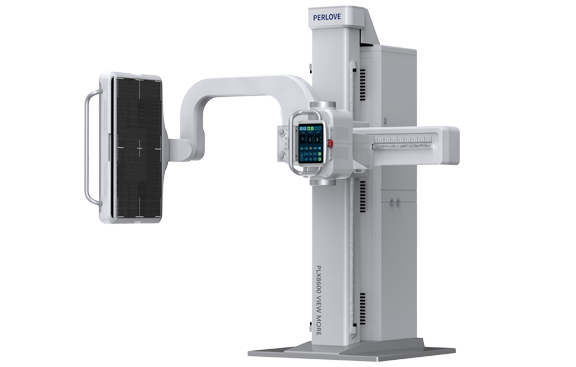

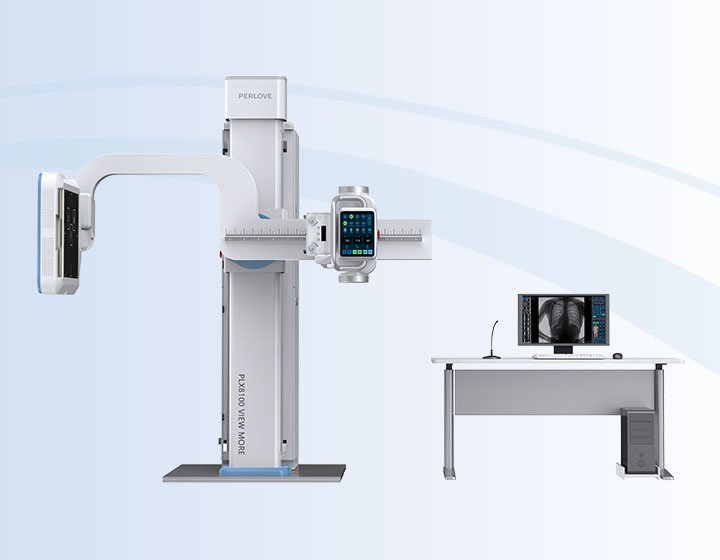

High Performance and Intelligent Straight-arm DR Meet the Needs of Full-body Radiography Straight-arm & X-ray tube lifting and rotating Compact design Small space occupying Rapid movement and fast positioning Flexible Movement Rotate to meet various angles of shooting Lift up and down for easy positioning of radiography. Electrically synchronized movement of X-ray tube and SID.

Integrated image chain design to reduce dose Seamless integrate with PACS for information sharing and remote diagnosis Remote system maintenance function Self-diagnosis and fault code displaying for accurately locate problem and has self-protection function 2000APR settings for quick positioning(maximum in the market) Dual energy subtraction is optional The whole body image stitching function
